Home > Parts Center > Safety Parts > Rail-Shoe

3 years Warranty, DF Rail Sliding Shoe <1600kgs,<2.0 m/s

3 years Warranty, DF Rail Sliding Shoe <5000kgs,<2.5 m/s ,
Sale: 0
$40.85 - $43.00
/ Unit
|
10 Unit(Min. Order)
15-24 Unit 2.00% Off
25-49 Unit 3.00% Off
>=50 Unit 5.00% Off
Safety Rail Shoe Type:
DX4 DX4B DX23 DX16
Final Solution:
Item
$0.00
(100 In Stock)
$0.00
Selected List
0
No Selected Products
Payment:
Bank Transfer
Western Union
Add to Inquiry PDF Format
Description
Description
Rail shoe is a sliding guide device between the elevator guide rail and the car or counterweight. can stabilize the car or counterweight onto the guide rail safely

Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.

All types of Safety parts from us are be ensured under 3 years warranty based on first transaction Term FOB. all gear without steel rope,
more details please down cataloge of Rail Shoe at right size of this Page  ""

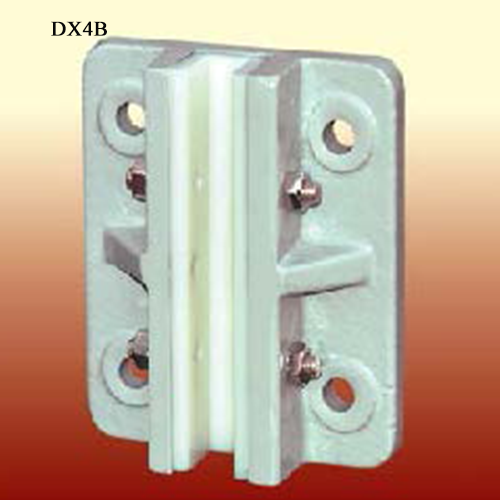

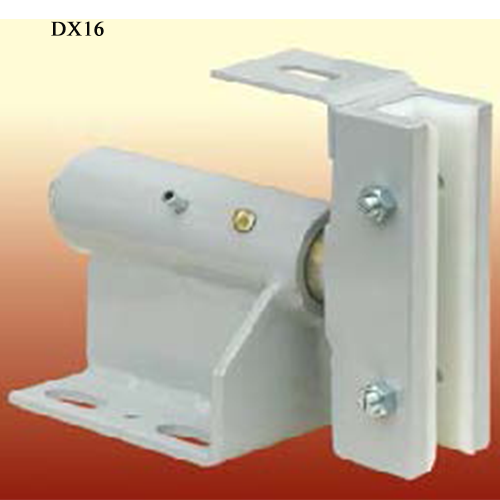

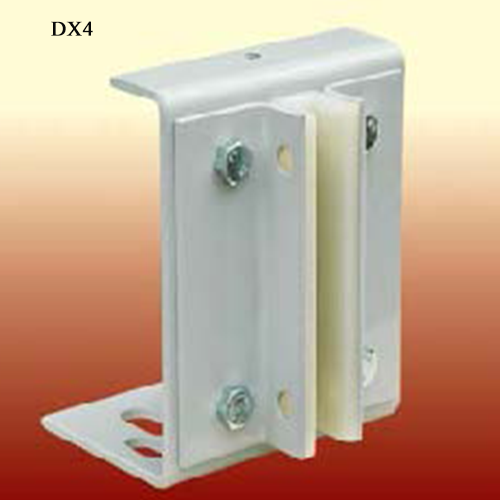

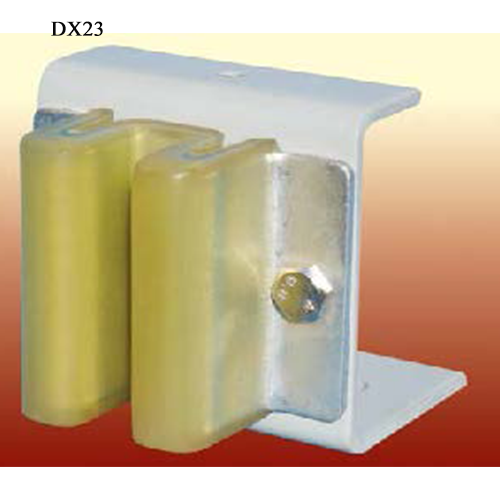

Type # CTB-PC-DFRSDX4 CTB-PC-DFRSDX4B CTB-PC-DFRSDX23 CTB-PC-DFRSDX16
Speed m/s <=1.75 <=1.75 <=1.75 <=2.0
Capacity Load kgs <=1250 <=1250 <=1250 <=1600
Front Pressures N <=1000 <=1000 <=1000 <=2000
Side Pruessure N <=650 <=650 <=650 <=2000
Rail Size mm <=10,16 <=10,16 <=10,16 <=9, 10,16
Slide Block 　 　 / /
Photos
