Elevator Display PCB shows the situation / information when elevator is working up/down
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
Elevator Display Specication
Monarch Indicator MCTC-HCB-D630
Overview

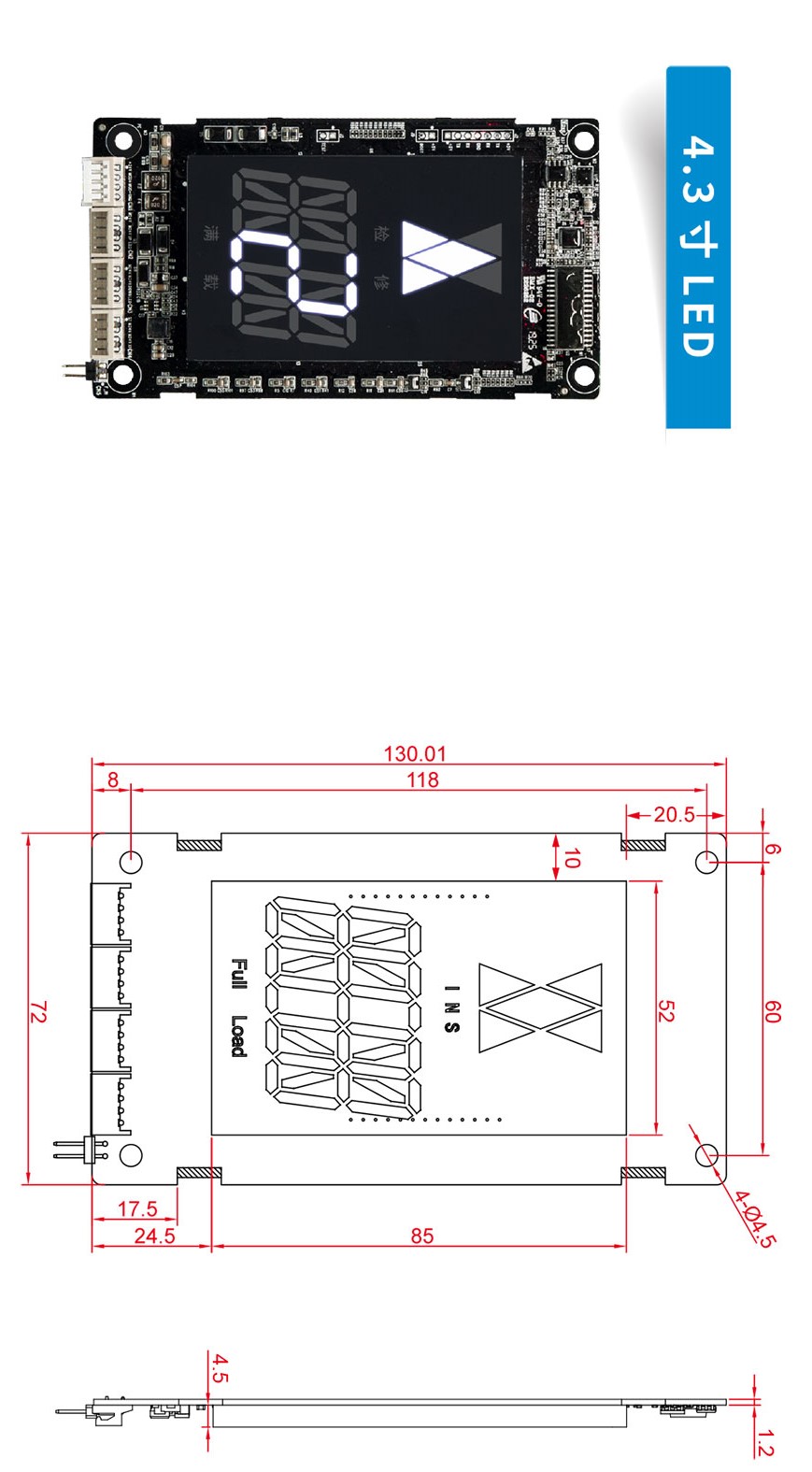

■ Dimensions: as drawing mm
■ Ultrathin segment vertical display, white character in black background
■ Up/Down call button input, elevator lock and fire emergency input; up/
down button indicator output
■ Floor address setting button, 56 floors supported
■ Flash on arrival
■ 3-digit floor number display "2-digit number+A/E/F/H/L/U/P/S/-"
■ Over- and full-load state are indicated both in Chinese and English: " 满
载 " and "Full Load". Inspection state is indicated both in Chinese and
English: " 检修 " and "Out of Service".
■ Elevator locking state is not displayed.
■ "INS+floor number" in scrolling display at inspection, overload icon
on the left lit at full load/overload
■ Fault code displayed and block blinking at fault, "FIRE" in scrolling
display at fire emergency
■ "VIP+floor number" in scrolling display in VIP state
