Elevator Display PCB shows the situation / information when elevator is working up/down
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
Elevator Display Specication
Monarch 4.3 inch Indicator MCTC-HCB-R600
Overview

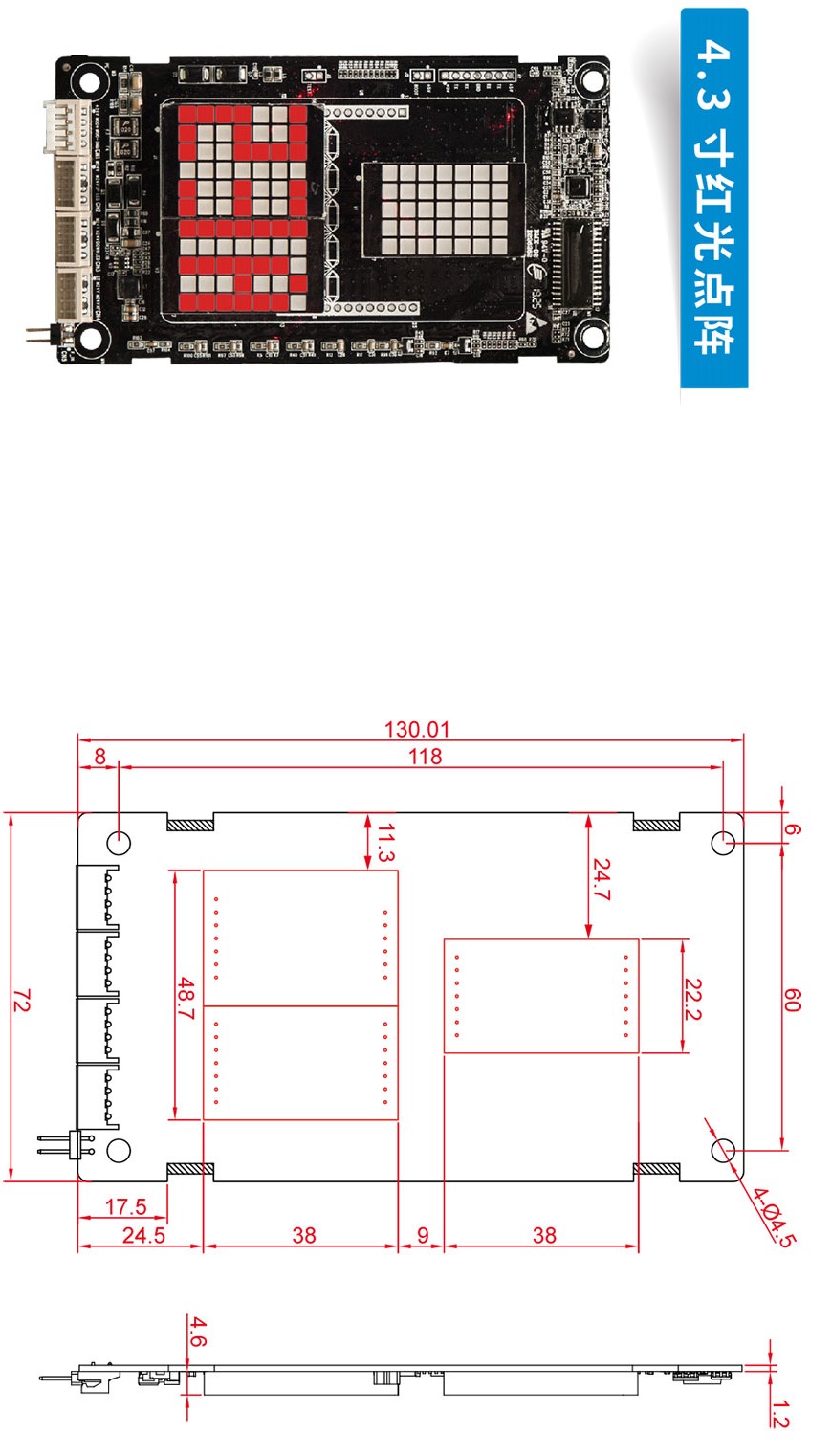

■ Dimensions: as drawing mm
■ Ultra-bright 5*7 dot-matrix display in red, left area displaying running
direction, and right two areas displaying high digit and low digit of floor
number
■ Up/Down button input, elevator lock and fire emergency input
■ 56 floors supported
■ "INS" displayed at inspection, "OL"/"FL" at overload or full load, "FIRE"
at fire emergency, at fault
