Elevator Limit Switch control acutually position of elevator in movement.
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
more details please down cataloge of SWITCH at right size of this Page "
"
Elevator Limit Switch Specification Main Features
| Features | S3-1370-AC2 | S3-1370-DC1 | S3-1371-AC2 | S3-1371-AC1 | HD1370 AW |
| Contact Structure | 1NC | 1NC | 1N0 | 1N0 | 1NC |
| Operating Force | ≤10N | ||||
| Travel | 5mm | ||||
| Max V | AC 220 | DC 110 | AC 220 | DC 110 | AC 220 Anti-Water |
| Max A | 2A | 0.3A | 2A | 0.3A | 2A |
| Reset Mode | Auto Reset | Auto Reset | |||

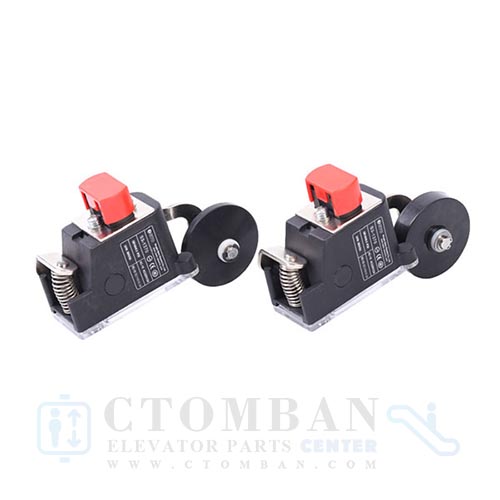

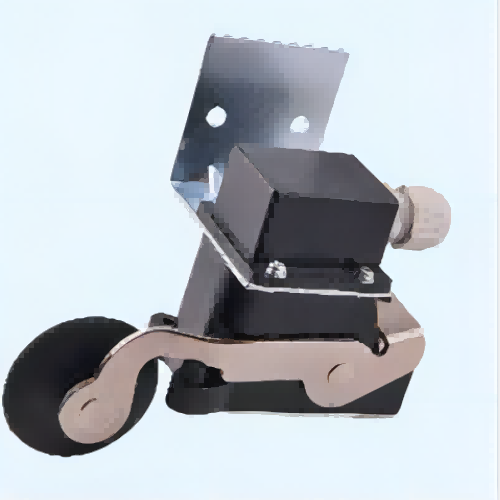

| Photo |  |
|
 |
||
