Elevator Guide Rail Bracket Cabin side

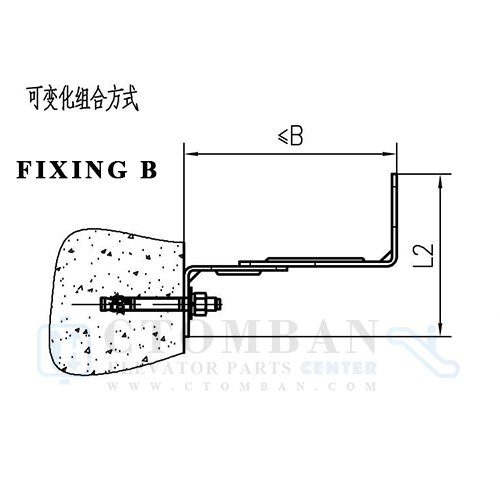

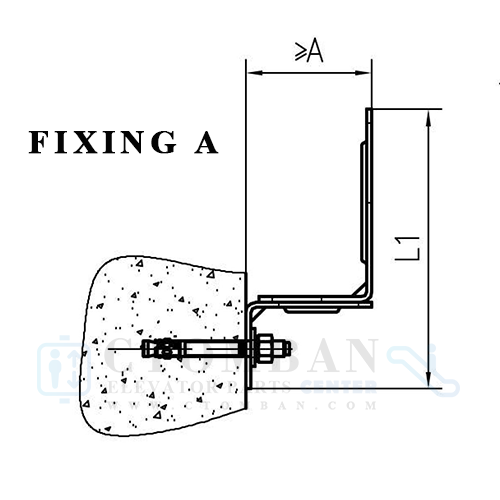

Adjust Cabin Rail brakets Specification as below
| Type | CTN-RB-1 | CTN-RB-2 | CTN-RB-3 | CTN-RB-4 | CTN-RB-5 | CTN-RB-6 |
| L1.mm | 190 | 215 | 240 | 265 | 290 | 315 |
| L2.mm | 130 | 130 | 130 | 130 | 130 | 130 |
| A.mm | 65 | 65 | 120 | 120 | 145 | 145 |
| B.mm | 155 | 180 | 205 | 230 | 255 | 280 |
| Adjust length mm |
65~150 | 65~180 | 120~205 | 120~230 | 145~255 | 145~280 |
| kgs | 1.64 | 1.8 | 1.96 | 2.11 | 2.27 | 2.41 |
Note : 1 Set = braktes + joint bots + joint washer + rail clip + ancher bolts.
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
