HPMT MT70-HCB-U1/U2 Elevator Display PCB shows the situation / information when elevator is working up/down
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
Elevator Display Specication
Main Features

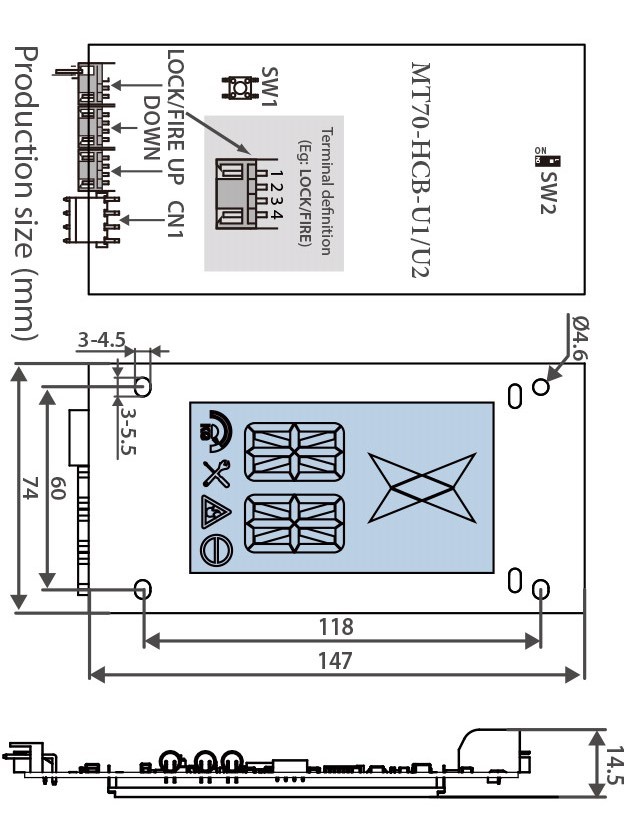

■ Size: 74×147×14.5mm
■ DC24V power supply input, Modbus communication protocol

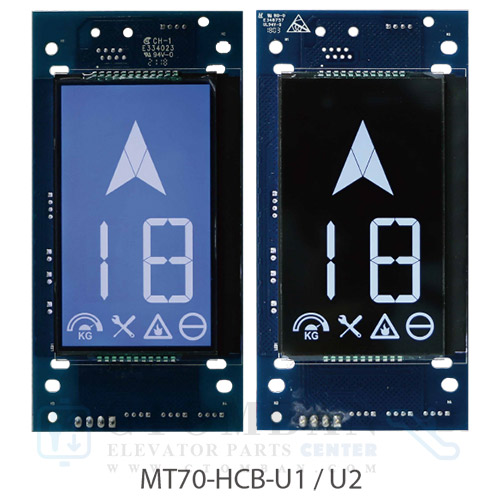

■ 4.3 inches vertical LCD segment display. HCB-U1: White on blue, HCB-U2: White on black
■ Support displays such as: over-load, full-load, inspection, re, parking
■ Automatically reduce display brightness during idle time and enter into energy saving mode
■ Ultrathin design for wall-mounted outbound call box
